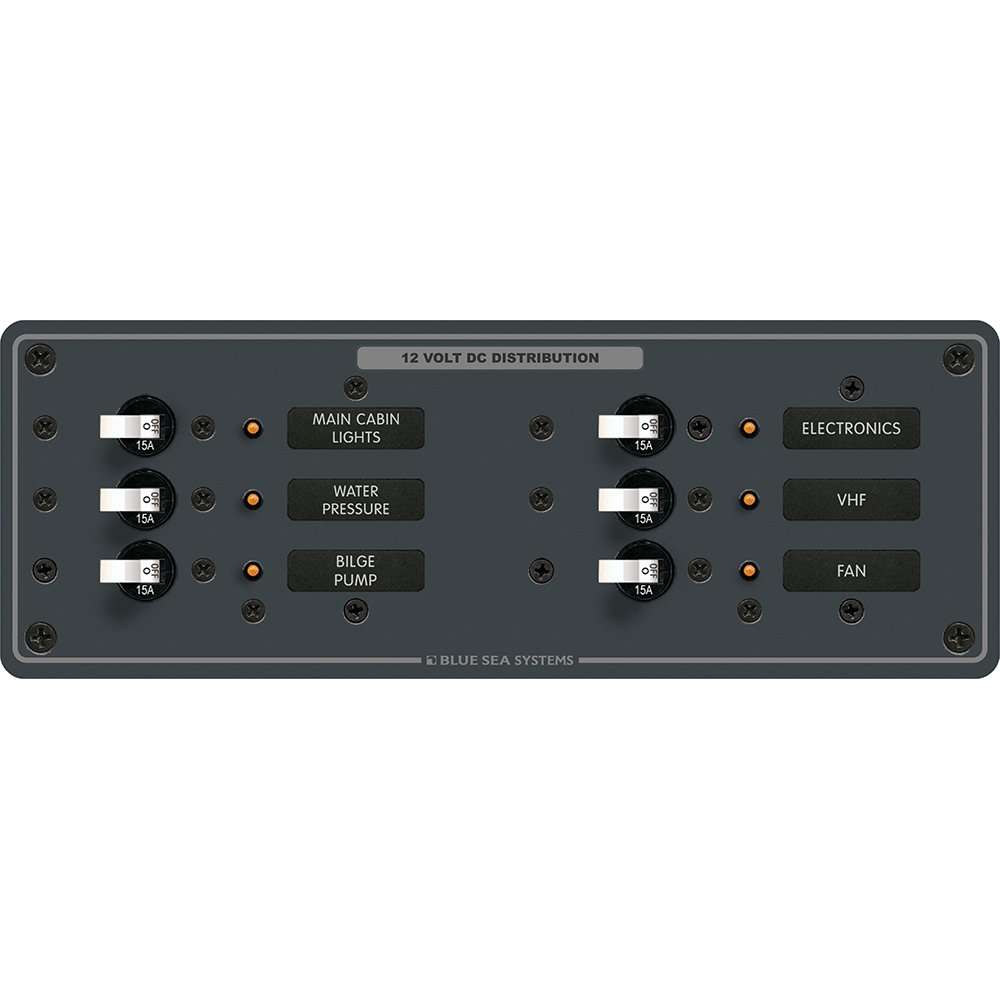

Blue Sea 8096 DC 6 Position Toggle Branch Circuit Breaker Panel – White Switches
Login to see prices $356.49
Blue Sea 8096 DC 6 Position Toggle Branch Circuit Breaker Panel – White Switches
| Weight | 2.3 lbs |
|---|
8096 DC 6 Position Toggle Branch Circuit Breaker Panel – White Switches
Features:
- All positive, negative and grounding buses installed, fully pre-wired
- Panels with meters include toggle switch for mounting up to 3 battery banks
- All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
- All circuit label positions are backlit on standard panels – No kit required
- “ON” indicating LEDs installed in all circuit positions
Specifications:
- Positions: 6
- Nominal Voltage: 12v/24v
- Maximum Amperage: 100A per bus
- Height: 3.75″
- Width: 10.5″
- Depth: 2.5″
Included:
- (6) 7210 A-Series White Toggle Circuit Breaker – Single Pole 15A
- (1) 8030 Basic DC Panel Label Set – 30 Labels
