Wichard Self-Locking Large Shackle – Diameter 5mm – 3/16″
Login to see prices $27.32
Wichard Self-Locking Large Shackle – Diameter 5mm – 3/16″
| Weight | 0.1 lbs |
|---|

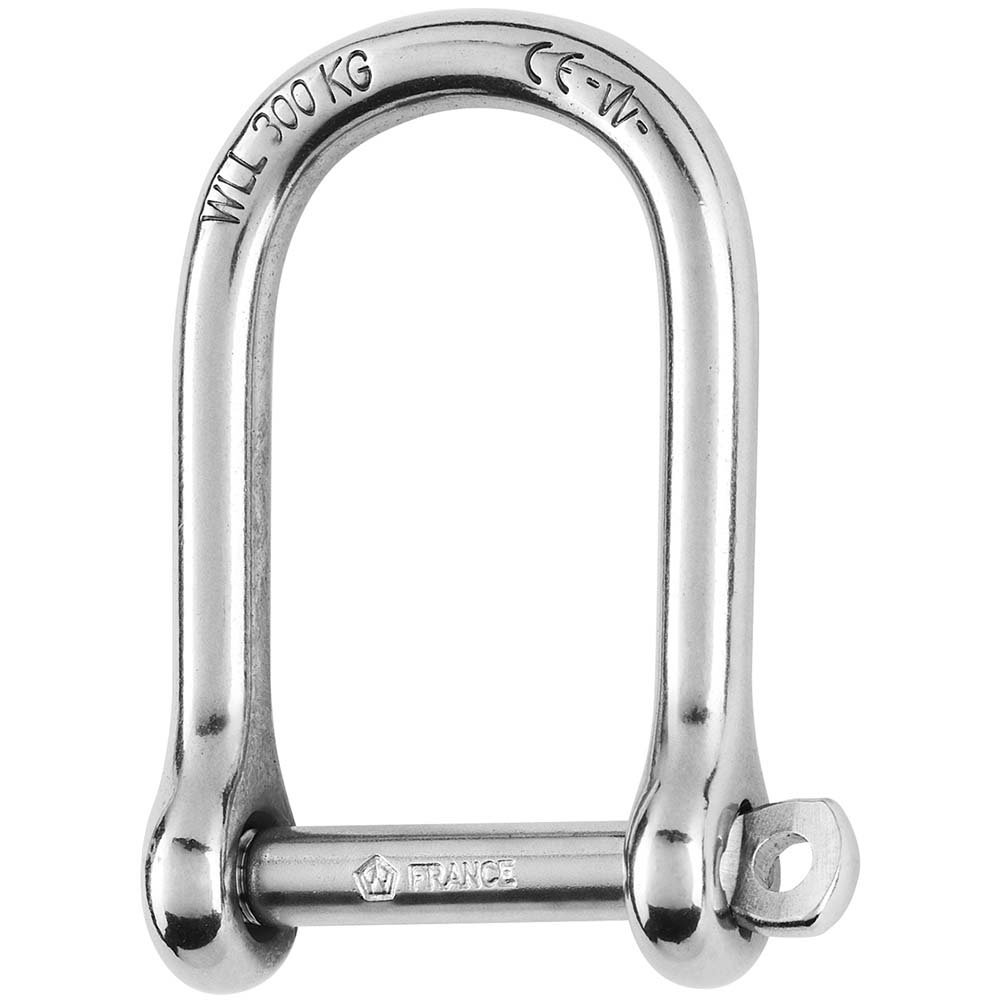

Self-Locking Large Shackle – Diameter 5mm – 3/16″
Features:
- Self-locking large shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications:
- For applications where a large opening shackle is required
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 550
- WLL (lb) 480
- Breaking load (lb) 2420
- Weight (lb) 0.035
Dimensions (see 2nd image):
- A (inch) 1-27/64″
- B (inch) 25/32″
- C (inch) 13/64″
- D (inch) 7/16″
- D diameter (inch) 13/64″
- E (inch) 13/64″
- F (inch) 1-57/64″
- G (inch) 1-3/8″
