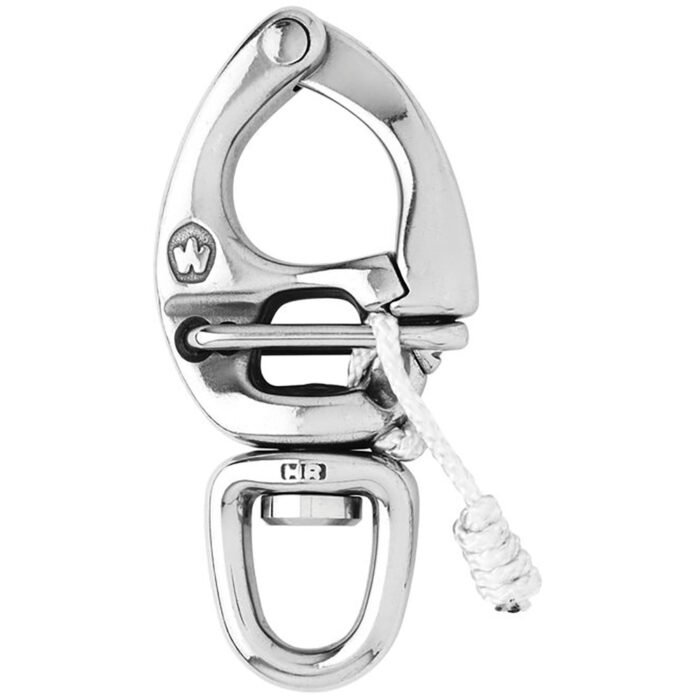

Wichard HR Quick Release Snap Shackle With Swivel Eye – 130mm Length – 5-1/8″
Login to see prices $365.72
Wichard HR Quick Release Snap Shackle With Swivel Eye – 130mm Length – 5-1/8″
| Weight | 0.8 lbs |
|---|
Description
HR Quick Release Snap Shackle With Swivel Eye – 130mm Length – 5-1/8″
Features:
- HR forged (17.4 PH) quick-release snap shackle with swivel eye
- The opening is made by pulling the lanyard
- Perfect to attach one sheet or halyard
- Outstanding working and breaking loads
- Free rotation of the snap shackle thanks to the swivel
Applications:
- For spinnaker operations
- Perfect for spinnaker sheets and halyards
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 7050 / (kg) 3200
- Breaking load: (lb) 13880 / (kg) 6300
- Weight: (lb) 0.818 / (g) 371
Dimensions:
- A: (inch) 1 3/16″ / (mm) 30
- B: (inch) 25/32″ / (mm) 20
- Length: (inch) 5 1/8″ / (mm) 130
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
