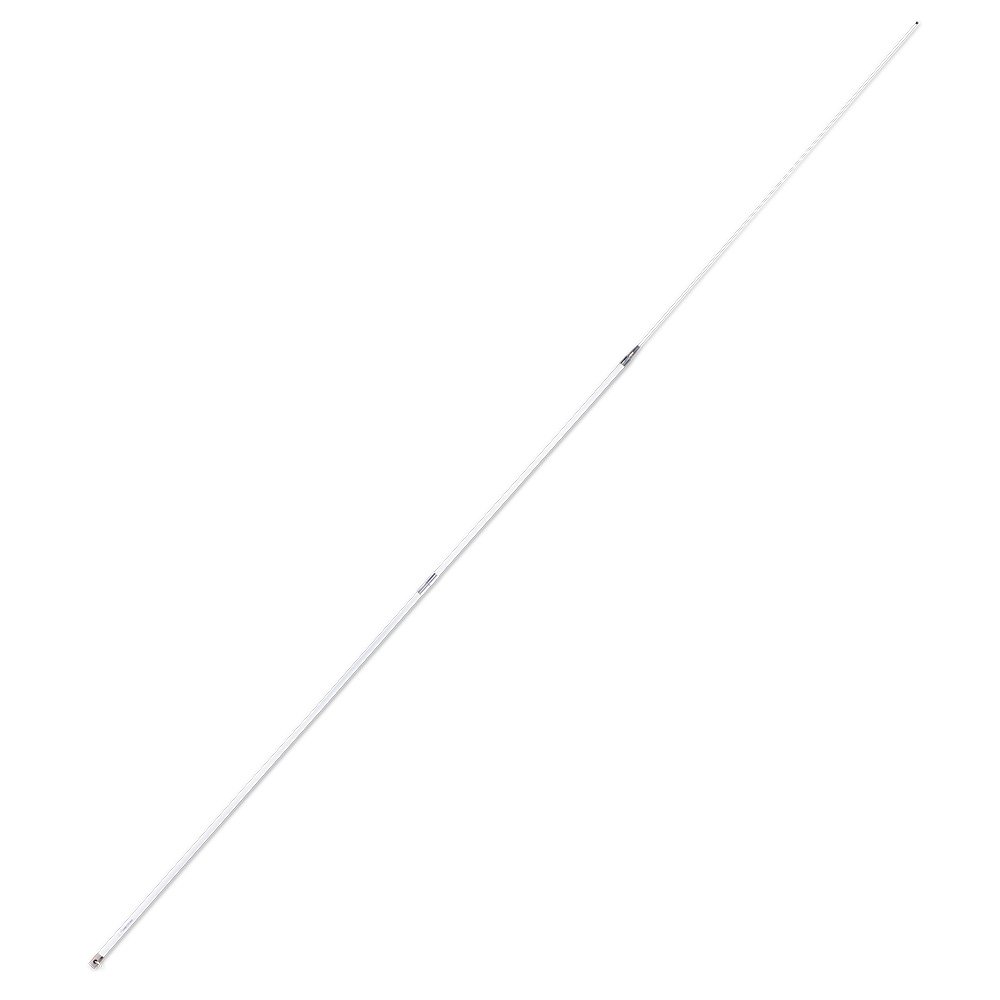

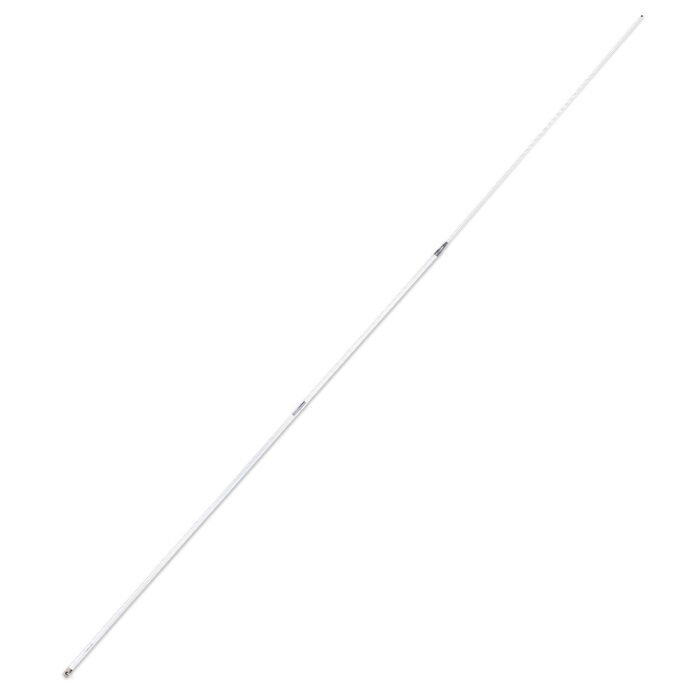

Shakespeare 5309-R 23′ Galaxy VHF Antenna – 9dB Gain
$1,079.99 $971.99
| Weight | 15.8 lbs |
|---|
5309-R 23′ Galaxy VHF Antenna – 9dB Gain
THIS PRODUCT MUST SHIP TRUCK FREIGHT AND DOES NOT QUALIFY FOR ANY SHIPPING PROMOTIONS
This design invokes all the antenna engineers tricks to produce the clearest possible transmission and reception over the longest range.
Features:
- Phased 1/2 wave elements in collinear array with a band spread matching sleeve and a choking stub to suppress cable radiation
- Brass and copper elements
- Stainless steel ferrule with standard 1″-14 thread
- Includes 20′ RG-8/X cable and a PL-259 connector
- Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit (pictured mount not included)
- Two sections: Base 172″, Tip 105″
- Twin to: Galaxy Style 5310-A HF/SSB
- Shakespeare Limited Warranty: 5 years
- Includes FME Cables
Technical Specifications:
Frequency: VHF Marine Band
Bandwidth: 5 MHz within 2.0:1 VSWR
SWR: Nominally 1.5:1 at 156.8 MHz
Gain: 9 dB
Max Input (Watts): 150 watts
DC Ground: NO
Height (feet): 23′
Polarization: Vertical
