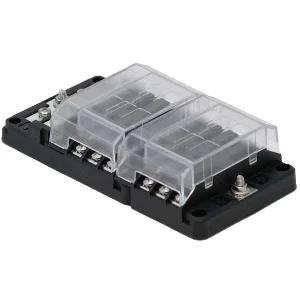

Egis RT Fuse Block 12 Position w/LED Indication

RT Fuse Block 12 Position with LED Indication

This 12-position fuse block has a modular design that can produce seven (7) unique configurations from Egis 8028 & 8030 and reduce part numbers to stock for all build requirements. Also, this fuse block has an LED indication.

Applications:

• Blown fuse LEDs speed up the correction of system faults and improve the ability to remotely diagnose customer issues.
• Harsh environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options.

Features:

• Bullet-proof construction – designed with high-temperature materials and stainless steel self-locking hardware, allows mounting anywhere on the vehicle
• Protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps
• Supports SAE circuit protection standards for thermal/short circuit events

Specifications:

• Maximum Current (Entire Block) Amps: 100
• Maximum Current (Per Circuit) Amps: 30
• Max Output Wire Size: #10 AWG
• Voltage Range VDC: 12-24
• Number of Fuse Positions: 12
• Compatible Fuse Types: ATO / ATC / ATF

Focal Features:

Spare Fuse Locations

Two locations per 6 circuits for spare or test resistors to reduce siren volumes during evaluation.

Stainless Steel Self-Locking Hardware

100 % non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.

LED Fuse Diagnostics

Blown fuse LED indication for each output circuit provides a clear indication of faulty circuits and eases troubleshooting issues remotely.

Cover/ Label Recesses

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.
