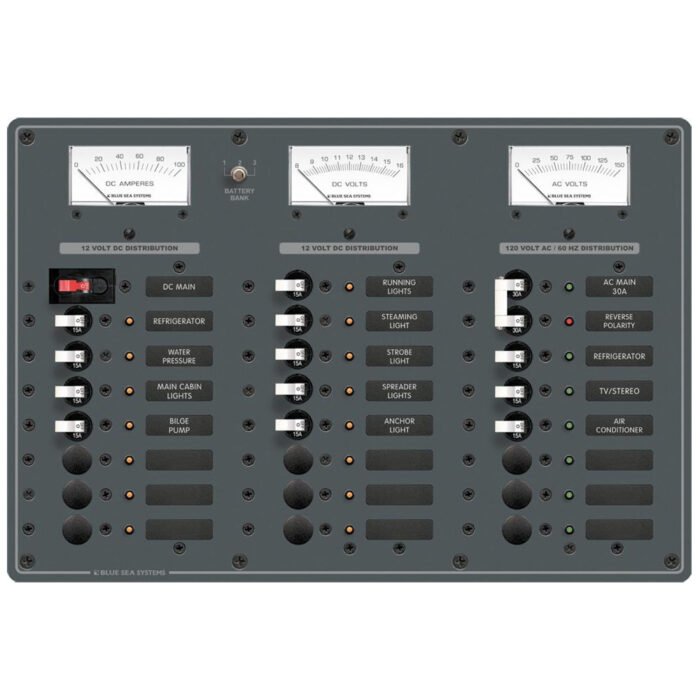

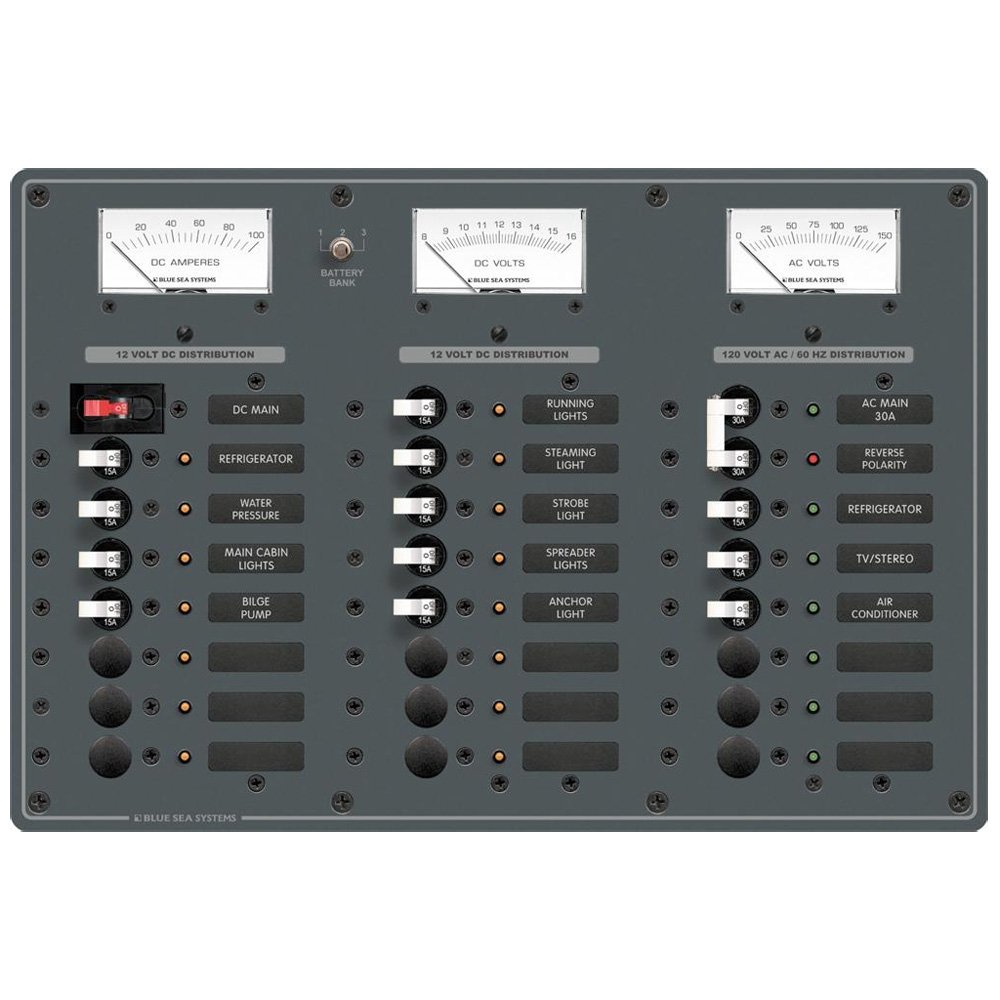

Name: Blue Sea 8184 AC Main + 6 Positions/DC Main +15 Positions
Brand: Blue Sea Systems
SKU: 8184

8184 AC Main + 6 Positions/DC Main +15 Positions

Switches Color: White

Features:

All AC and DC buses installed and fully pre-wired
Label backlighting pre-installed
ON – indicating LEDs installed in all circuit positions
100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch

Specifications:

Positions: 6 AC / 15 DC
Nominal Voltage: 230v AC / 12v DC
Height: 10″
Width: 14.75″
Depth: 3″

Included:

(3) 7299 A-Series White Toggle Circuit Breaker – Single Pole 8A (AC Branch)
(1) 7294 A-Series White Toggle Circuit Breaker – Double Pole 16A (AC Main)
(1) 9354 AC Voltmeter – 0 to 250v AC (AC Meter)
(9) 7210 A-Series White Toggle Circuit Breaker – Single Pole 15A (DC Branch)
(1) 7250i Circuit Breaker CA1 100A Red IP (DC Main)
(1) 8017 DC Analog Ammeter – 0 to 100A w/ Shunt (DC Meter)
