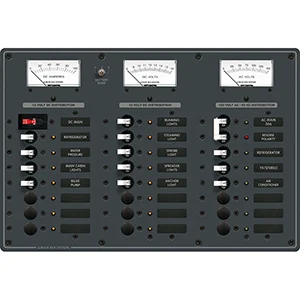

Blue Sea 8084 AC Main +6 Positions/DC Main +15 Positions Toggle Circuit Breaker Panel – White Switches
Login to see prices $1,356.29
| Weight | 8.6 lbs |
|---|
8084 AC Main +6 Positions/DC Main +15 Positions Toggle Circuit Breaker Panel – White Switches
Features:
- Includes set of 30 common AC and 30 common DC labels
- All AC and DC buses installed, fully pre-wired
- Label backlighting pre-installed
- All LEDs installed
- Maximum panel Amperage: 100 Amperes DC / 50 Amperes AC
AC Features:
- Red reverse polarity indicating LED
- Ready for installation of optional 4029 AC Isolation Cover
- 9353, 0-150 Volt AC Voltmeter
DC Features:
- 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
- 8003, 8-16 Volt DC Voltmeter
- 8017, 0-100 Amp DC Ammeter
- Owner upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter
Specifications:
- AC Positions: Main +6
- DC Positions: Main +15
- 120 Volts AC
- 12 Volts DC
- (1) 30A – (3) 15A AC Circuit Breakers
- (1) 100A – (9) 15A DC Circuit Breakers
*Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards
