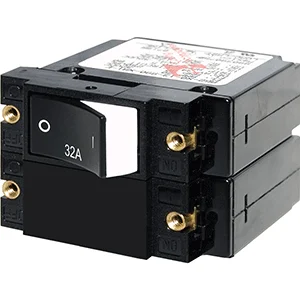

Blue Sea 7575 A-Series Raised Rocker Circuit Breaker – Double Pole – 32A
$93.99 $84.59
| Weight | 0.35 lbs |
|---|
A-Series Raised Rocker Circuit Breaker – Double Pole – 32A
Features:
- Color actuator indicates “OFF” position
- “Trip Free” design cannot be held “ON” during fault current condition
- International ON/OFF symbols support vertical or horizontal mounting
Specifications:
- Amperage: 32A AC / 32A DC
- Actuator Style: Raised Rocker
- Poles: 2
- Maximum Voltage: 120V AC / 240V AC / 32V DC
- Circuit Breaker Type: Magnetic Hydraulic – trip free
- Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 85° C
- Mounting Screw: #6-32 Stainless Steel
- Mounting Screw Torque: 6 in-lb (0.68 Nm)
- Screw Terminal Torque: 14 in-lb (1.58 Nm)
- Switching Cycles: 10000
- Terminal Screw: #10-32 Stainless Steel
- Weight: 0.38lb (0.17 kg)
