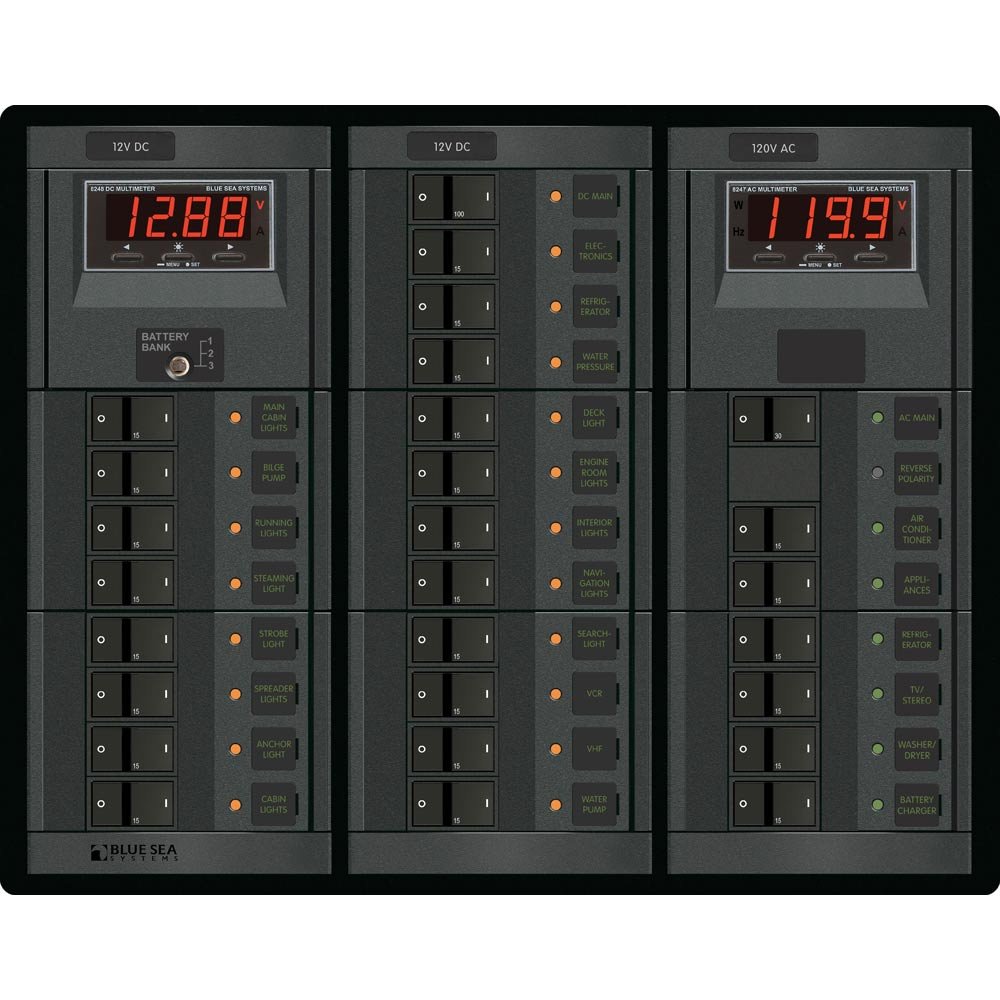

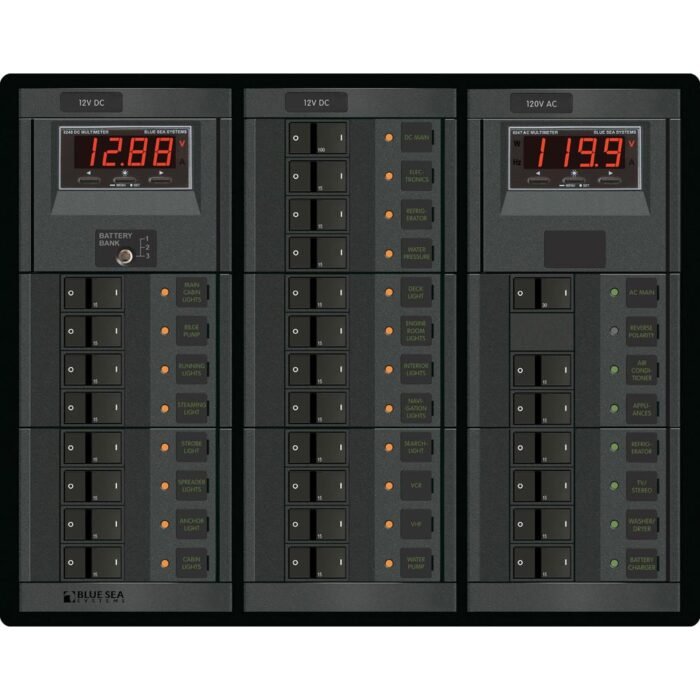

Blue Sea 1218 12V DC Main + 19 Positions / 120V AC Main + 6 Positions

12 Volt DC Main + 19 Positions/120 Volt AC Main + 6 Positions

Features:

• 360 AC Panels may be equipped with main breakers up to 100A per pole to suit the application

• AC and DC panel amperage determined by AC Main and DC Main circuit breakers

• Modular manufacturing design reduces manufacturing time

• Interchangeable modular design eliminates custom engineering and metal fabrication

• Flexible modifications

• Flexible panel orientation (panels without meters)

Specifications:

• Positions: 6-AC / 19-DC

• Nominal Voltage: 120V AC / 12V DC

• Height: 10.75″ (273.05mm)

• Width: 13.63″ (346.2mm)

• Depth: 4.00″ (101.6mm)

• Weight: 12.80lb (5.81kg)

Includes:
(1) – 4205 – Basic DC Label Kit – 30 Black Square Labels [LABEL]
(1) – 4206 – Basic AC Label Kit – 30 Black Square Labels [LABEL]
(6) – 7403 – A-Series Flat Rocker Circuit Breaker – Single Pole 15A (AC Branch)
(1) – 7414 – A-Series Flat Rocker Circuit Breaker – Double Pole 30A (AC Main)
(1) – 8247 – AC Digital Multi-Function Meter with Alarm (AC Meter)
(19) – 7403 – A-Series Flat Rocker Circuit Breaker – Single Pole 15A (DC Branch)
(1) – 7549 – C-Series Flat Rocker Circuit Breaker – Single Pole 100A (DC Main)
(1) – 8248 – DC Digital Multi-Function Meter with Alarm (DC Meter)
