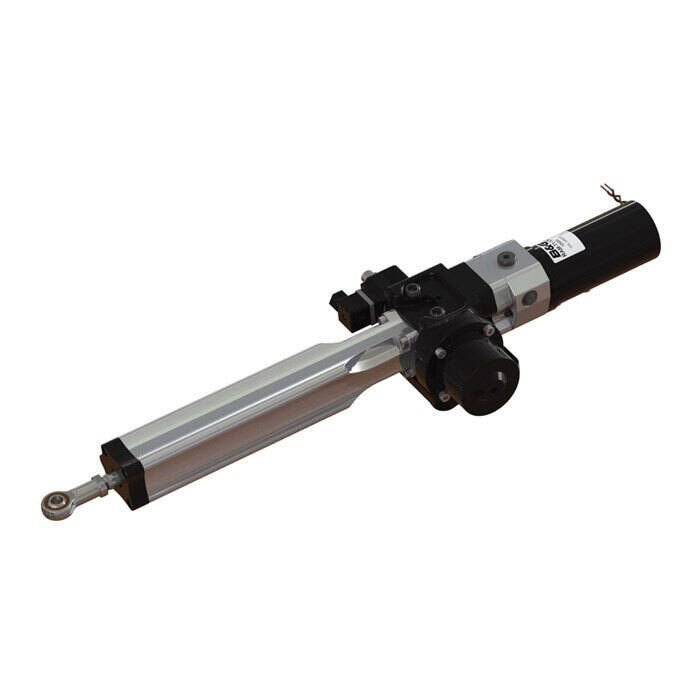

B&G Hydraulic Ram T2 – 12V
$2,499.00 $2,249.10
B&G’s RAM-T2-12V Pilot Ram is a fully integrated hydraulic system that allows the Power Steer Mode on the Pilot to be used in case of manual steering failure.
Description
B&G’s RAM-T2-12V Pilot Ram is a fully integrated hydraulic system that allows the Power Steer Mode on the Pilot to be used in case of manual steering failure.
Features:
- Fully integrated hydraulic system: no external hoses, reservoirs, etc
- High power, efficient drive units for maximum power with minimum consumption
- Allows the Power Steer Mode on the Pilot to be used in case of manual steering failure
Specifications:
- Application: Vessels up to 20,000kg
- Required Computer NAC-3
- Performance Maximum thrust (intermittent): 675 kg
- Hard over time nominal RAM-T2: 9 seconds
- Temperature rating: minimum: -20ºc
- Temperature rating maximum: +65ºc
- Relief valve setting: 62 bar
- Back-drive at 12 sec Hard-over: 7kg
- Motor voltage nominal: 12V DC
- Motor power: 100W
- Max current: 12V DC 25% duty 22.5 Amp
- Rotation Reversing Protection: IP44
- Connection: 1 meter, (2) Core Flying Lead
- Ignition protection: BS EN 28846:1993
- Coil power continuous: 12W
- Connection: DIN 43650
- Recommended oil: Mineral based hydraulic ISO VG10
- Materials:
- Body: Aluminum BS 1490
- Piston rod: Chrome Plated Stainless Steel
- Seals: Nitrile & PTFE
- Body Protection: SP270
