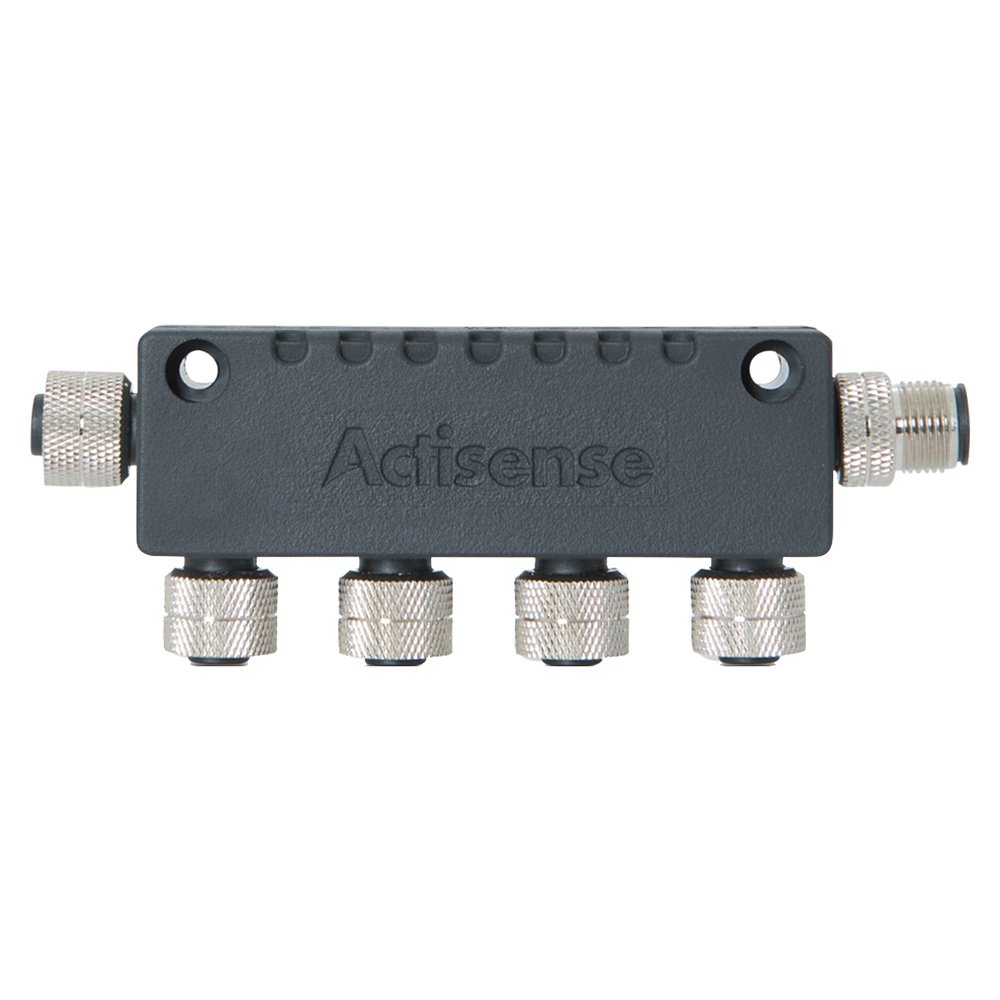

Actisense N2K Micro 4 Way T-Piece
Login to see prices $121.50
Actisense N2K Micro 4 Way T-Piece
| Weight | 0.25 lbs |
|---|
Description
N2K Micro 4 Way T-Piece
The Actisense 4 Way T-Piece is for use where multiple drops or ‘ports’ are required from the NMEA 2000 backbone. It’s as quick and easy to install as a single T-Piece, uses less space than two individual T-pieces, and costs less than four.
The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.
Features:
- NMEA 2000 Approved
- RoHS Compliant
Specifications:
- Rated Current: 4A
- Rated Voltage: 60V DC
- Male Contact: Brass, gold plated
- Female Contact: Phosphor bronze, gold plated
- Contact Carrier: PA66 (30% Glass filled), black
- Contact Polarization: Standard M12 -“A”- polarization
- Mating Thread: M12
- Screw Cap: Brass, nickel plated
- O-Ring Seal: Rubber, Black
- Housing: TPU, flame retardant to UL94V-0, Halogen Free
- Internal Housing Shield: Copper Foil
- Weight: 105g
- Protection: IP67 (when mated)
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -40°C to +85°C
